*Alloy 42,ASTM
F30, UNS k94100,(Fe-42Ni)，Chinese 4J42
*Alloy 52,ASTM
F30,UNS K95050, (Fe-50Ni),Chinese 4J50
*sealmet HC-4,
alloy42-6, ASTM F31, UNS k94760, (Fe-42Ni-6Cr),Chinese 4J6
Contrast
|
Grade
|
Relative Grade
|
|
Russia
|
U.S.A.
|
U.K.
|
Japan
|
France
|
Germany
|
|
4J6
|
Н42 X 6
|
42Ni-6Cr
Carpenter42-6
Sylvania4
Sealmet 4
|
-
|
NRS-1
YEF-426
SNC
|
ASV(426)
Ni42Cr6
|
Vacovit426
(NiCr426)
|
|
4J47
|
47НХ
|
-
|
-
|
-
|
461
|
-
|
|
4J49
|
49НХР
|
Carpenter 456
|
-
|
-
|
FeNi46Cr5
|
Vacovit 465
Vacovit 485
|
|
4J42
|
42Н
|
Glass Sealing 42
Uniseal 42
|
Nilo42
|
YEF42
NSD
|
N42
|
Vacodil 42
Nilo42
|
|
4J45
|
46Н
|
Niromet 46
Ferrovac 46 Ni
|
Nilo45
|
|
Fe-Ni42
|
Vacodil 46
|
|
4J50
|
50Н
|
FeNi50
|
Nilo51
|
NS-1
|
N50
|
Vacovit 500
|
|
4J52
|
52Н
50Н-ВИ
|
Glass Sealing 52
Niloy 52
|
-
|
N52
|
N52
|
Vacovit 520
FeNi52
|
|
4J54
|
-
|
-
|
-
|
-
|
N54
|
Vacovit 540
FeNi54
|
Grade & Chemical Composition (see Table
1)
Table
1 Grade & Chemical Composition
|
Grade
|
Grade & Chemical Composition(%)
|
|
C
|
P
|
S
|
Mn
|
Si
|
B
|
Al
|
Co
|
Ni
|
Cr
|
Fe
|
|
≤
|
|
4J6
|
0.05
|
0.020
|
0.020
|
0.25
|
0.30
|
|
0.20
|
|
41.5～42.5
|
5.50～6.30
|
Bal
|
|
4J47
|
0.05
|
0.020
|
0.020
|
0.40
|
0.30
|
|
|
|
46.8～47.8
|
0.80～1.40
|
Bal
|
|
4J49
|
0.05
|
0.020
|
0.020
|
0.40
|
0.30
|
0.02
|
|
|
46.0～48.0
|
5.00～6.00
|
Bal
|
|
4J42
|
0.05
|
0.020
|
0.020
|
0.80
|
0.30
|
|
0.10
|
1.0
|
41.5～42.5
|
|
Bal
|
|
4J45
|
0.05
|
0.020
|
0.020
|
0.80
|
0.30
|
|
0.10
|
|
44.5～45.5
|
|
Bal
|
|
4J50
|
0.05
|
0.020
|
0.020
|
0.80
|
0.30
|
|
0.10
|
|
49.0～50.5
|
|
Bal
|
|
4J52
|
0.05
|
0.020
|
0.020
|
0.60
|
0.30
|
|
-
|
|
51.5～52.5
|
|
Bal
|
|
4J54
|
0.05
|
0.020
|
0.020
|
0.60
|
0.30
|
|
-
|
-
|
53.5～54.5
|
|
Bal
|
Notes:
1、Under condition that the average coefficient of the linear expansion meets
the requirements of the standard, the content of nickel and cobalt are allowed to
deviate from the stated range.
2、The shape and dimensions of
the alloys are in compliance with YB/T5235.
Mechanical Property (see Table 2 &
Table 3)
Table
2 Tensile Strength of Alloy Strips
|
Code
|
Status
|
Tensile Strengthδb/MPa
|
|
R
|
Annealed
|
<590
|
|
L
|
Unannealed
|
>820
|
Table 3 Hardness of Deep-drawn Strips
|
Deep-Stamping
|
Thickness/mm
|
Hardness/HV
|
|
Fe-Ni-Cr
|
|
≤190
|
|
Fe-Ni
|
>2.5
|
≤190
|
|
≤2.5
|
≤165
|
Physical Property (See Table 4 & Table
5)
Table
4 Heat Treatment & Coefficient of Linear Expansion
|
Grade
|
Heat Treatment System of the Samples
|
Average Coefficient of Linear Expansion
|
|
20-300°C
|
20～400°C
|
20-450°C
|
|
4J6
|
To be heat treated at a
temperature of 1130±20℃ in
the hydrogen, hold
for 15 min., cool to200℃ at a rate less than 5℃/min
|
7.6～8.3
|
9.5～10.2
|
|
|
4J47
|
|
8.1～8.7
|
|
|
4J49
|
8.6～9.3
|
9.4～l0.1
|
|
|
4J42
|
To be heat treated at a
temperature of 900±20℃ in
the hydrogen, hold
for 1h, cool at a rate less than 5℃/min to200℃
|
4.0～5.0
|
|
6.5～7.5
|
|
4J45
|
6.5～7.2
|
6.5～7.2
|
|
|
4J50
|
9.2～10.0
|
9.2～9.9
|
|
|
4J52
|
To be heat treated at a
temperature of 850±20℃ in
the hydrogen, hold
for 1h, cool at a rate less than 300℃/H to 400℃
|
9.8～11.0
|
9.8～11.0
|
|
|
4J54
|
10.2～11.4
|
10.2～11.4
|
|

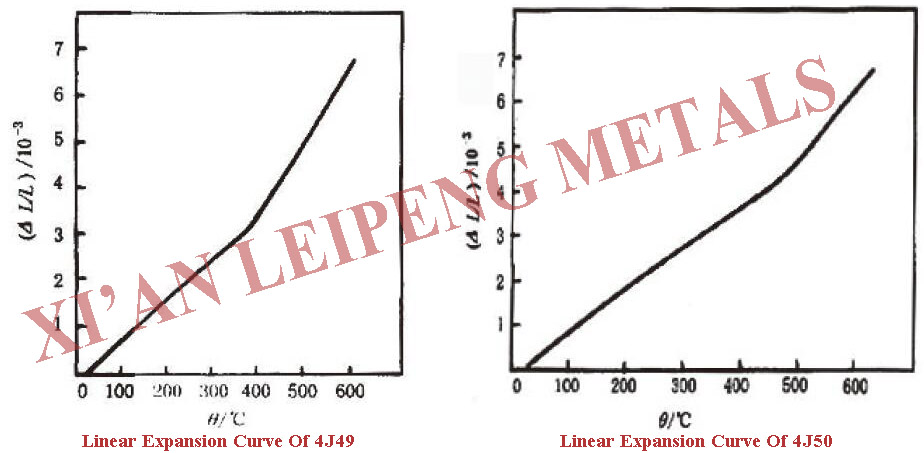

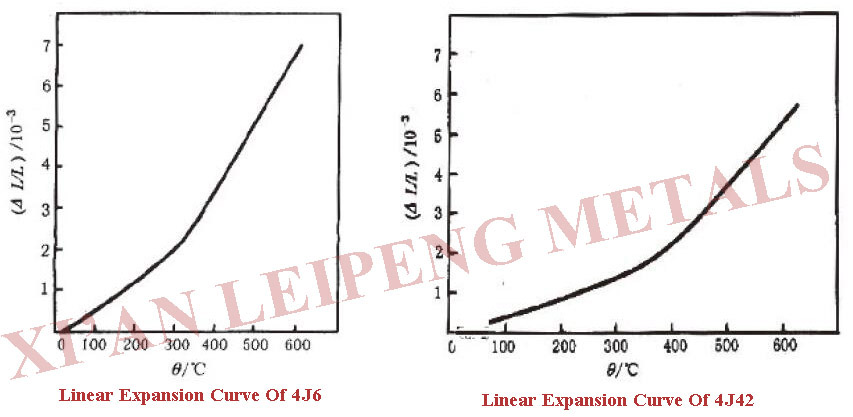

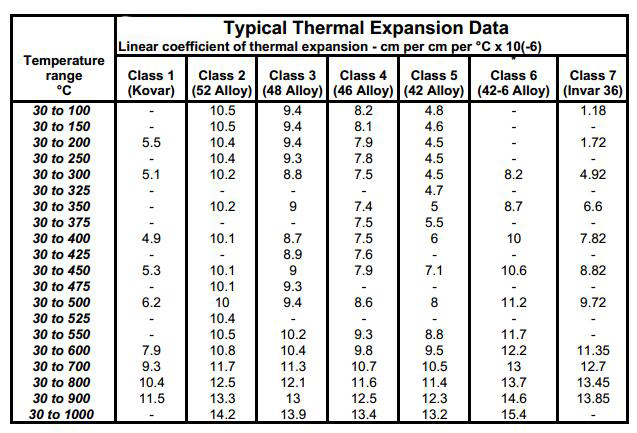

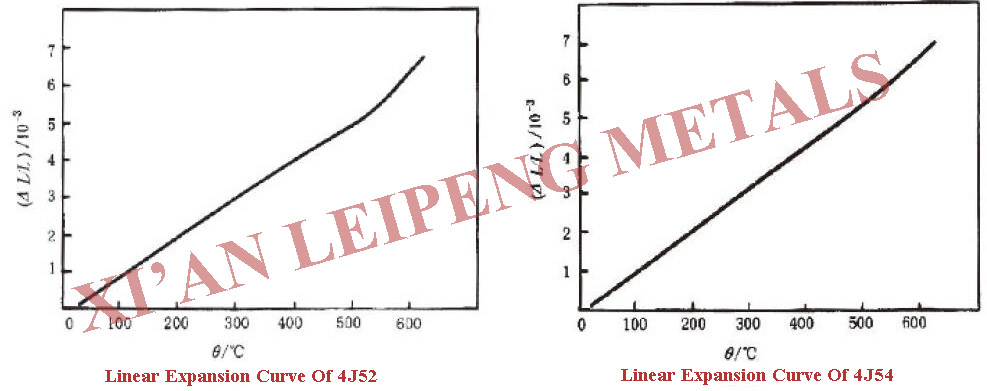

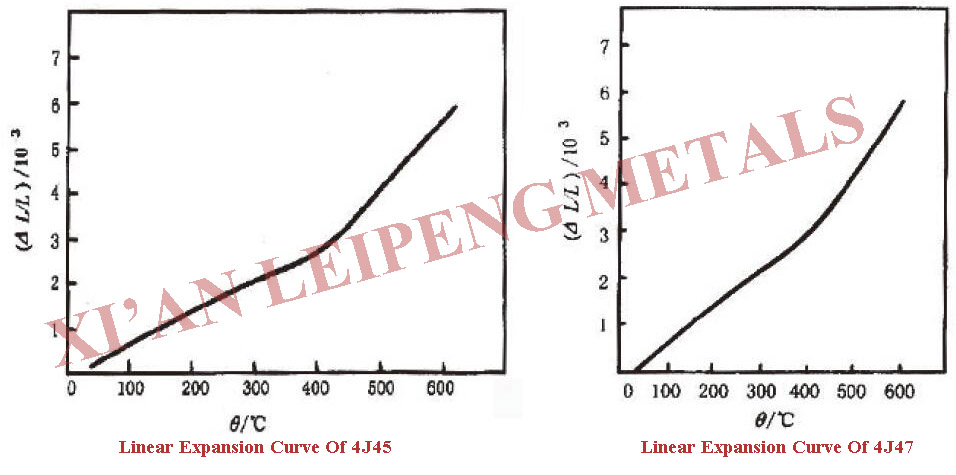

Table
5 Typical Expansion Coefficient
|
Grade
|
Average
Coefficient of Linear Expansion ā/(10一-6/K)
|
|
20～100℃
|
20～200℃
|
20～300℃
|
20～400℃
|
20～450℃
|
20～500℃
|
20～600℃
|
|
4J6
|
6.8
|
7.0
|
7.7
|
9.7
|
|
11.1
|
12.2
|
|
4J47
|
8.1
|
8.6
|
8.3
|
8.3
|
|
9.1
|
10.0
|
|
4J49
|
9.0
|
9.0
|
8.9
|
9.6
|
|
10.9
|
11.8
|
|
4J42
|
5.6
|
4.9
|
4.8
|
5.9
|
6.9
|
7.8
|
9.2
|
|
4J45
|
7.5
|
7.5
|
7.1
|
7.2
|
7.1
|
8.3
|
9.5
|
|
4J50
|
9.8
|
9.8
|
9.5
|
9.4
|
|
9.7
|
10.6
|
|
4J52
|
10.3
|
10.4
|
10.2
|
10.3
|
10.3
|
10.3
|
10.8
|
|
4J54
|
10.7
|
12.7
|
10.7
|
10.8
|
10.3
|
10.8
|
11.2
|
NOTE: The data in the table are for reference
only.
Specification:
Sheet/Plate, Bar/Rod/Wire/Coil,Capillary/Pipe/Tube
Size Range:
*Sheet---thickness 0.05mm~3.5mm,
width:≤350mm,Condition: cold rolled, bright, bright annealed
*Plate---thickness3.5mm~40.0mm,width:≤300mm,Condition: cold rolled, hot rolled, annealed
*Round Wire---Dia0.1mm~Dia5.0mm,Condition: cold
drawn, bright, bright annealed
*Flat Wire---Dia0.5mm~Dia5.0mm,length:≤1000mm,Condition:flat rolled, bright
annealed
*Bar---Dia5.0mm~Dia8.0mm,length:≤2000mm,Condition:cold drawn,bright,
bright annealed
Dia8.0mm~Dia32.0mm,length:≤2500mm,Condition:hot rolled,bright,
bright annealed
Dia32.0mm~Dia180.0mm,length:≤1300mm,Condition:hot forging,peeled,
turned, hot treated
Capillary---OD8.0mm~1.0mm,ID0.1mm~8.0mm,length:≤2500mm,Condition: cold drawn, bright,
bright annealed
Pipe---OD120mm~8.0mm,ID8.0mm~129mm,length:≤4000mm,Condition: cold drawn, bright,
bright annealed
Note: we could do any other
products with specified technical standard, say,
ASTM,SAE,DIN,S.E.W.,JIS,ISO,IEC,NF,BS,ΓОСТ.PLS contact us for more information:
Tel: +86-29-89396652 or e-mail us at: Sales@xaleipeng.com
Alloy 52 is used
as Glass to metal seals for electronic tubes, automotive and industriallamps,and specialty hermetic devices.It’s commonly used in the telecommunications
industry in a variety of electronic applications. Alloy 52 is made 52 percent
of nickel and 48 percent of iron. It’s more durable than nickel by itself.
Produced with good machining properties, it’s manufactured in a controlled
environment under controlled conditions.
