High Temp Superalloys HOME >> High Temp Superalloys
PRODUCTS:Hastelloy Alloys
GRADE:Hastelloy alloy B、C、 X
PRODUCTION STANDARD:ASTM ,SAE AMS
Views:1338
  • PRODUCTS DETAILS
  • SPECIFICATION

    Introduction:



    Hastelloy is the registered trademark name of Haynes International, Inc. The trademark is applied as the prefix name of a range of twenty-two different highly corrosion-resistant metal alloys, loosely grouped by the metallurgical industry under the material term “superalloys” or “high-performance alloys”.

    The predominant alloying ingredient is typically the transition metal nickel. Other alloying ingredients are added to nickel in each of the subcategories of this trademark designation and include varying percentages of the elements molybdenum, chromium, cobalt, iron, copper, manganese, titanium, zirconium, aluminum, carbon, and tungsten.

    The primary function of the Hastelloy super alloys is that of effective survival under high-temperature, high-stress service in a moderately to severely corrosive, and/or erosion-prone environment where more common and less expensive iron-based alloys would fail, including the pressure vessels of some nuclear reactors, chemical reactors, distillation equipment, and pipes and valves in chemical industry. Although a super alloy, Hastelloy does experience degradation due to fabricating and handling. Electropolishing or passivation of Hastelloy can improve corrosion resistance.

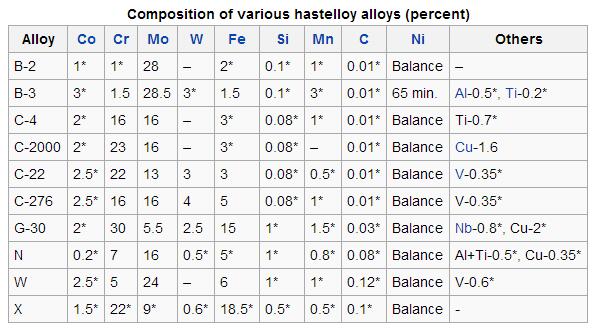

             Table 1


    1 The undiluted deposited chemical composition of covered electrodes of some of these alloys may vary beyond the limits shown.

    *Maximum



    Table 2 Standards

    TYPE

    UNS NO.

    BAR/WIRE

    SHEET/STRIP

    PLATE

    TUBE

    PIPE

    FORGINGS

    HASTELLOY B2

    N10665

    AMS 5396

    ASTM-B-333

    ASTM-B-333

    ASTM-B-622
         B-622

    ASTM-B-619
        B-622

    ASTM-B 335

    HASTELLOY C22

    N06022

    ASTM B-572
    ASTM B-564

    ASTM B-575

    ASTM B-575

    ASTM B-622
    ASTIM B-626

    ASTM B-619

    ASTM B-574
    ASTM B-575

    HASTELLOY C 276

    N10276

    ASTM-B-574

    AMS 5530
    ASTM-B-575

    AMS 5530
    ASTM-B-575

    ASTM-B-622
    B-625

    ASTM-B-619
        B-622

    ASTM-B-574

    HASTELLOY G

    N06030

    N06035

    ASTM-B-581

    ASTM-B-582

    ASTM-B-582

    ASTM-B-622
          B-626

    ASTM-B-581

    HASTELLOY W

    N10004

    AMS 5755
    5786

    AMS 5755

    HASTELLOY X

    N06002

    AMS 5754
    ASTM-B-572

    AMS 5536
    ASTM-B-435

    AMS 5536
    ASTM-B-435

    AMS 5587
          5588

    AMS 5754




    Note: we could do any other products with specified technical standard, say, ASTM,SAE,DIN,S.E.W.,JIS,ISO,IEC,NF,BS,ΓОСТ.PLS contact us for more information: Tel: +86-29-89396652 or e-mail us at: Sales@xaleipeng.com
